New Sea Doo Switch Assemblies

Offered below are switch assemblies I personally build form high quality components to the same specs as oem Sea Doo parts. Additionally, the terminals aren’t just crimped but soldered then crimped for the best electrical conductivity and corrosion resistance you’ll find. In the environments these are exposed to, you want the best so that’s what I offer!

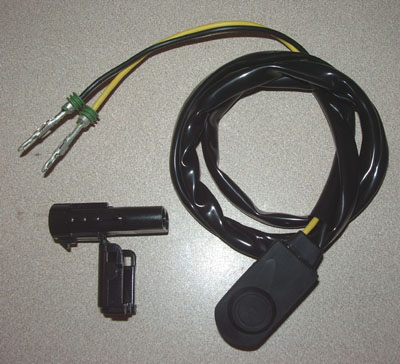

Sea Doo Start/Stop Assembly #1

This is a complete Sea Doo Start/Stop switch to fit the models listed below. It includes a new plug that hasn’t been installed yet so all you have to do is put the wires through the steering grommet then install the plug and you’re back in business. Just make sure to match the wire colors to the other connector when installing the plug!

• Replaces Sea Doo p/n 278000427 / 278000501

• SP - 1995 1996 1997
• SPI - 1995 1996
• SPX - 1995 1996 1997 1998
• GTS - 1995 1996 1997 1998 1999 2000 2001
• GTI – 1996 1997
• GTX - 1995 1996
• GTX RFI - 1998
• GSX – 1996 1997 1998
• HX - 1995 1996 1997
• XP - 1995 1996 1997
• EXPLORER - 1996 1997 2002

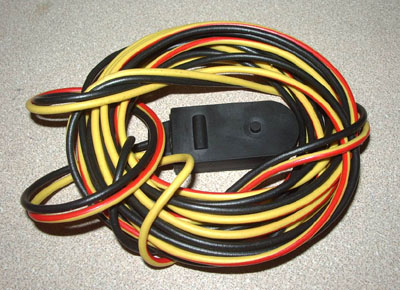

Sea Doo Start/Stop Switch #2

This is a Sea Doo Start/Stop switch to fit the models listed below.

• Replaces Sea Doo p/n 278001403 / 278001405

• GSX - 1999
• GSX RFI - 1999 2000 2001
• GTX - 1998 1999 2000 2001 2002
• GTX RFI - 2000 2001 2002
• RX - 2000 2001 2002
• RX X – 2001

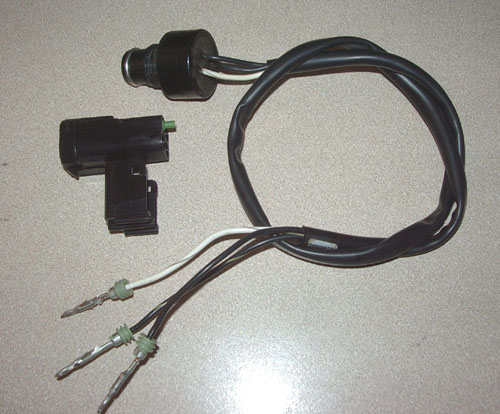

Sea Doo DESS Post Assembly #1

This is a complete Sea Doo DESS Post Switch to fit the models listed below. It includes a new plug that hasn’t been installed yet so if your application requires the wires to be run through, all you have to do is put the wires through the grommet then install the plug and you’re back in business. Just make sure to match the wire colors to the other connector when installing the plug!

• Replaces Sea Doo p/n 278000977 (note – that’s a DISCONTINUED part from Sea Doo)

• GTS - 1997
• GS - 1997 1998 1999 2000 2001
• GSX LTD - 1997 1998 1999
• GSX RFI - 1999 2000 2001
• GTI - 1997 1998 1999 2000 2001
• GTX - 1997 1998 1999 2000 2001 2002
• GTX RFI - 1998 1999 2000 2001 2002
• GTX DI - 2000 2001
• LRV - 2000 2001
• LRV DI - 2002 2003
• RX - 2000 2001
• RX DI - 2000 2001 2002
• RX X - 2001
• XP LTD - 1997 1998 1999 2000 2001

Sea Doo DESS Post Assembly #2

This is a complete Sea Doo DESS Post Switch to fit the models listed below. It includes a new plug that hasn’t been installed yet so if your application requires the wires to be run through, all you have to do is put the wires through the grommet then install the plug and you’re back in business. Just make sure to match the wire colors to the other connector when installing the plug!

• Replaces Sea Doo p/n 278000646 / 278000830 / 278000955

• 1997 SP
• 1997 1998 1999 SPX
• 1996 2002 XP
• 1996 GSX
• 1996 GTX
• 1997 HX
• 1996 1997 1998 1999 2000 Challenger
• 1997 1998 1999 Challenger 1800
• 1996 1997 1998 Speedster
• 1999 Speedster SK
• 1996 1997 1998 1999 2000 Sportster
• 1998 1999 Sportster 1800
• 2000 2001 2002 2003 Sportster LE
• 2002 Sportster LT
