A ĒBetter Than OEMĒ Sea Doo Seal Carrier Assembly

Offered here is a complete Sea Doo seal carrier thatís better than OEM or aftermarket. With an oem seal carrier assembled to current specs with the seals they call for, you canít see the grease escape and thatís also the case with most aftermarket ones. Note also most aftermarket carriers use two 267000094 seals and thatís a bad idea since pumping in too much grease can blow out a seal then you have to take the shaft out to fix it. Get a carrier that lets grease escape and you wonít have that worry! Iíve assembled this new unit using oem Sea Doo parts with the addition of a different seal on the engine side. This carrier is similar to an oem carrier in the fact that you have the superior sealing of the 267000094 seal on the pump (water) side but with the addition of a spring assisted single lip seal on the engine side so grease can escape there once itís full. Basically, when you pump in grease, excess comes out the weaker single lip seal when full and youíll be able to see it. This unit is personally assembled by me using new overstock oem parts and the seals are properly sealed into the carrier with Loctite 518. Besides the benefits of better quality and fit of oem parts, for the work involved with changing one of these itís hard to argue itís not worth spending a little more for oem!

PURCHASE ONE



Sea Doo Driveline Repair Kit

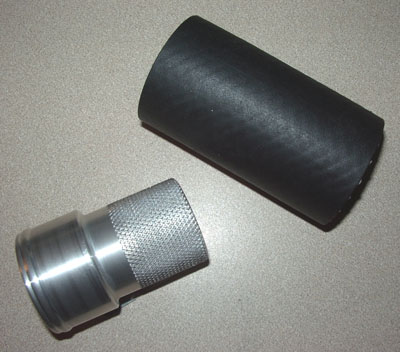

If your seal carrier has locked up on the driveshaft and damaged the original plastic hull insert, I assembled this kit to help with that repair. Offered here is my driveline repair kit that consists of a new precision machined aluminum hull insert, a hose, and my specially constructed ĒBetter than OEMĒ seal carrier. With an oem seal carrier assembled to current specs with the seals they call for, you canít see the grease escape and thatís also the case with most aftermarket ones. Note also most aftermarket carriers use two 267000094 seals and thatís a bad idea since pumping in too much grease can blow out a seal then you have to take the shaft out to fix it. Get a carrier that lets grease escape and you wonít have that worry! Iíve assembled this new unit using oem Sea Doo parts with the addition of a different seal on the engine side. This carrier is similar to oem in the fact that you have the superior sealing of the 267000094 seal on the pump (water) side but with the addition of a spring assisted single lip seal on the engine side so grease can escape there once itís full. Basically, when you pump in grease, excess comes out the weaker single lip seal when full and youíll be able to see it. The seal carrier is personally assembled by me using new overstock oem parts and the seals are properly sealed into the carrier with Loctite 518. Besides the benefits of better quality and fit of oem parts, for the work involved with changing one of these itís hard to argue itís not worth spending a little more for oem quality!
This kit doesnít include epoxy but Loctite makes a good 2 part marine epoxy thatís available through Lowes, WalMart and other stores. Note too the hose may have to be cut to fit since in my kit I include the longest one I could find to cover all applications.

PURCHASE ONE


Sea Doo XP / HX / 3D Bearing Assy

This is a custom assembled bearing carrier assy that fits the models below. With an oem seal carrier assembled to current specs with the seals they call for, you canít see the grease escape and thatís also the case with most aftermarket ones. Note also most aftermarket carriers use two 267000094 seals and thatís a bad idea since pumping in too much grease can blow out a seal then you have to take the shaft out to fix it. Get a carrier that lets grease escape and you wonít have that worry! Iíve assembled this new unit using oem Sea Doo parts with the addition of a different seal on the pump side. That way grease can escape there once itís full. Basically, when you pump in grease, excess comes out the weaker single lip seal when full and youíll be able to see it once full. The seal carrier is personally assembled by me using new overstock oem parts and the seals are properly sealed into the carrier with Loctite 518. Besides the benefits of better quality and fit of oem parts, for the work involved with changing one of these itís hard to argue itís not worth spending a little more for oem quality!

Fits the following Sea DoosÖ
1995-1997 HX
1997 XP
1998-1999 XP Limited
2000-2002 XP
2003-2004 XP DI
2004-2005 3D RFI
2006-2007 3D 947 DI

PURCHASE ONE



Click on image above to see full size.

Sea Doo Carbon Seal Assembly

This is a complete NEW Sea Doo driveshaft seal assembly that consists of an OEM carbon seal with a new aftermarket precision machined stainless seal carrier ring. Also included are two new o-rings for the carrier ring and a c-clip which is all you should need to get your driveline back in good working condition with no leaks. The retail price on these items is over $100 so donít miss this deal since I only have a couple left!

PURCHASE ONE
